Industrial Dryers

MURHOPYE DRUM DRYERS are useful in drying molten material or viscous slurries to obtain dried materials.
It can be used for research purpose in a laboratory or for small scale production in industries. Materials such as dyes, chemicals and foodstuff can be effectively dried on a drum dryer.



Features:

• Hard chrome plated drum rotating at 4 to 6 rpm.
• Drum heated by thermic fluid & electric heaters
• Feed arrangement- from a trough with applicator rolls.
• Scraper blade made of spring steel/ teflon / or other suitable material. The blade angle is adjustable for effective removal of dried material.
• Drum surface temperature is measured and controlled using thermocouple and a PID controller mounted on the panel.
• Drive and transmission: Induction motor & speed reduction using gear train / sprockets.
• Collection tray is provided to receive material discharged from the dryer.

Models: Available in various drum sizes and variety of applicators. Double drum dryers can also be offered. Custom designed, steam heated dryers can be offered.

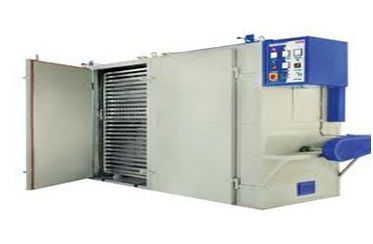

MURHOPYE TRAY DRIERS are widely used in laboratories and industries for dehydration, moisture determination, general drying and other applications.

Construction: Dryers are of double walled design with inner chamber made of MS and finished with heat resistant Aluminum paint. The gap between the walls is filled with glass wool for effective insulation.

Heating: Tubular electric heating elements are placed at the sides. Steam heated models with steam coils suitable for pressure up to 7 kg/cm2 are also available. Thermic fluid heated models with thermic fluid tube bundles are available for applications where thermic fluid heating is preferred.

Air circulation : Gravity convection type: Air intake and ventilators provided at appropriate locations ensure removal of moist air and introduction of fresh air into the dryer.

Forced Circulation: Standard tray dryers are cross flow type with fans on each side providing total air circulation on double passing principle. This results in closed loop circulation of air in two operational zones ensuring uniform drying. Fresh air intake and exhaust are provided with manually operated dampers/ ventilators.

Instrumentation and controls: The electric control panel consisting of temperature indication, ON/OFF switches and indication for fans and other safety features is provided.

Tray size: Standard tray size is 800 mm x 400 mm x 30mm are made of aluminum. Other sizes and material of construction are on request.

Models: Available in 12, 24, 48, 96, 192 tray models. 12 & 24 tray models are suitable for direct loading. Higher models are suitable for trolley loading. Higher capacity dryers can be made on request.
